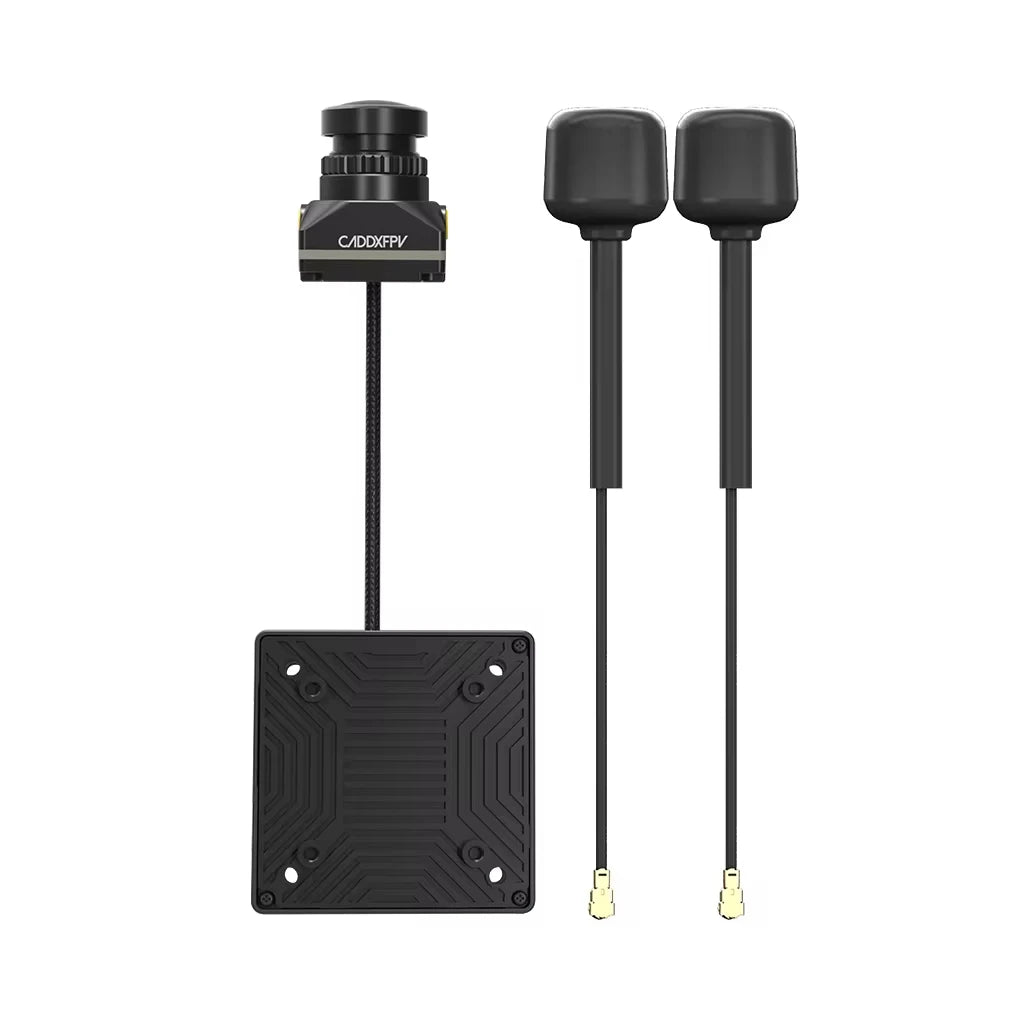

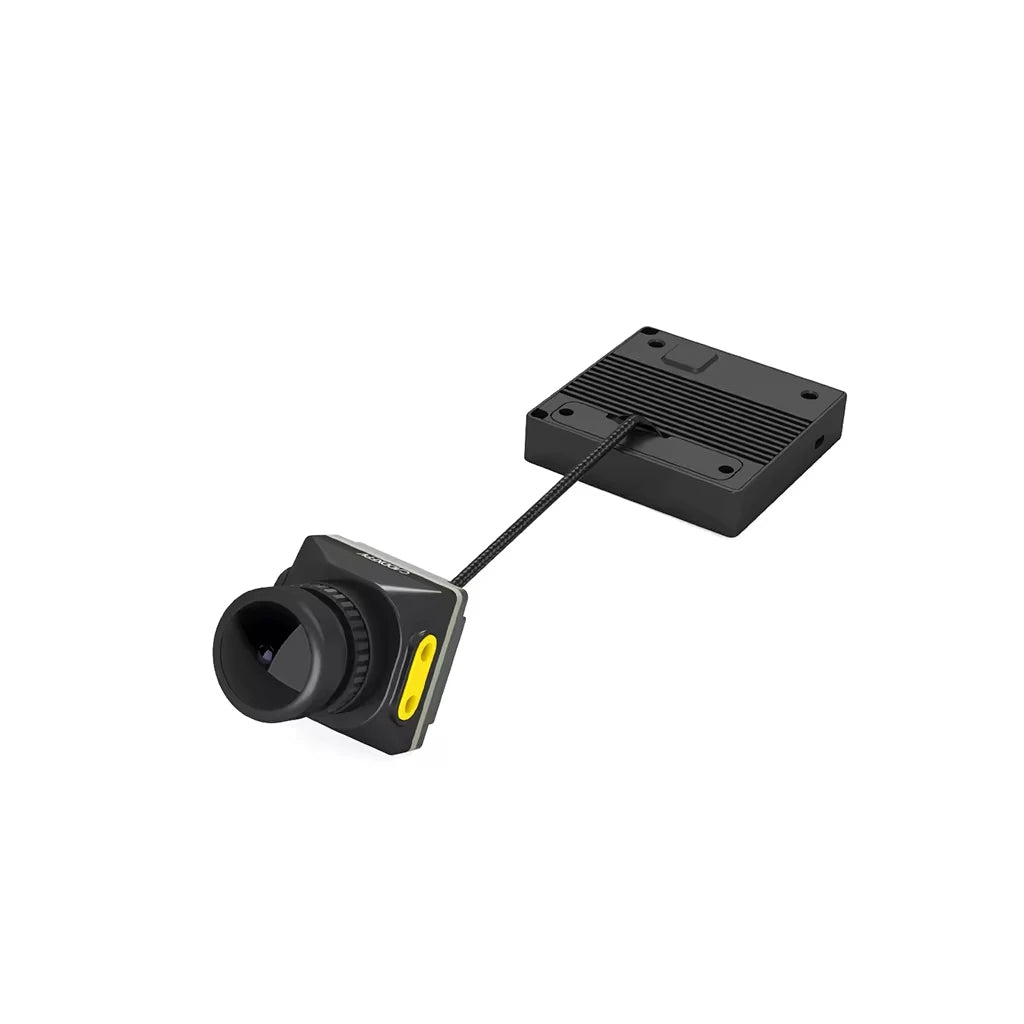

CADDXFPV Walksnail Avatar Moonlight kit 4K HD Camera Built-in EIS Support Gyroflow For RC FPV Freestyle Drone Quadcopter Plane

Precio regular
€186,00 EUR
Precio de venta
€186,00 EUR
Precio regular
Ganar 93 Puntos de recompensa. Saber más...

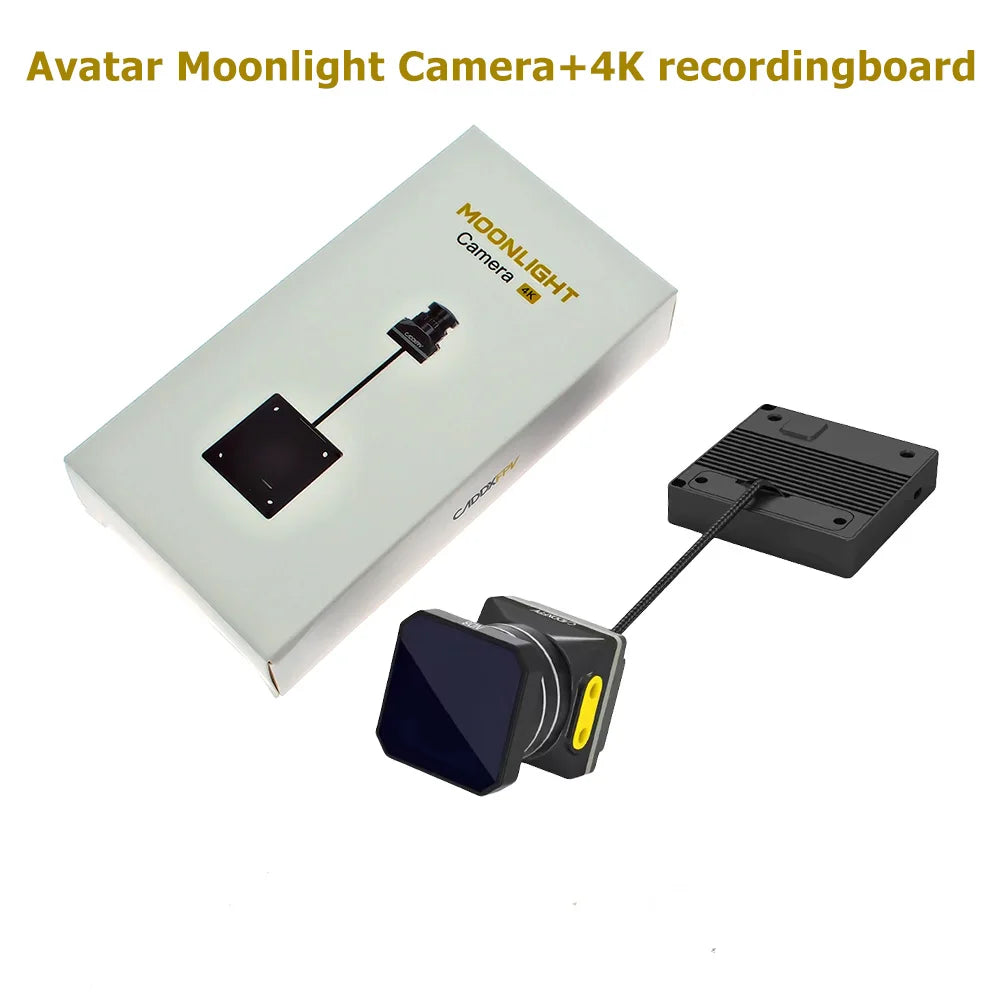

Color: Camera and 4K Board
Terms & conditions
Compre en el próximo
Para conseguirlo
Details


Specification


Model

Moonlight kit

Firmware name

AvatarMoonlight_Sky_X.X.X

Communication Frequency

5.725-5.850GHz

Transmitter Power (EIRP)

FCC:<30dBm; CE:<14dBm; SRRC:<20dBm; MIC:<25dBm

1/O Interface

JST1.0*4(Power in)JST0.8*6(USB),Micro SD card Slot;IPEX-1

Sensor

Starlight sensor

FOV

Max 160°

Aperture

F2.1

Shutter

Rolling shutter

ISO

100-25600

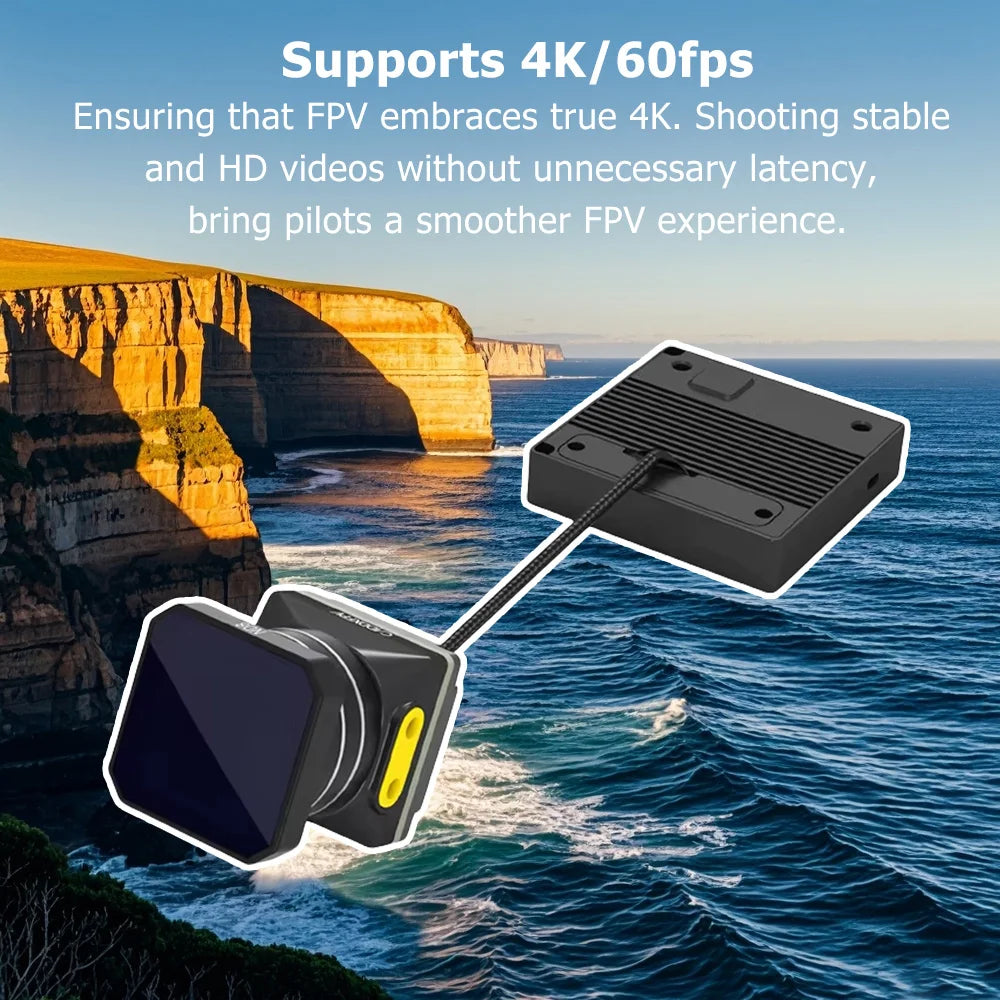

Recording resolution

4K@30/60fps,2.7K@30/60fps,1080p@100/60fps,720p@60fps

Max Mbps

150Mbps

Video format

MP4 (H.264)

3D DNR

Support

Gyroflow

Support

Built-in EIS

Support

Wide Power Input

7.4V-25.2V

Power consumption

12V@1.4A, 8V@2.2A

Memory card type

U3 MicroSD, Max 256G

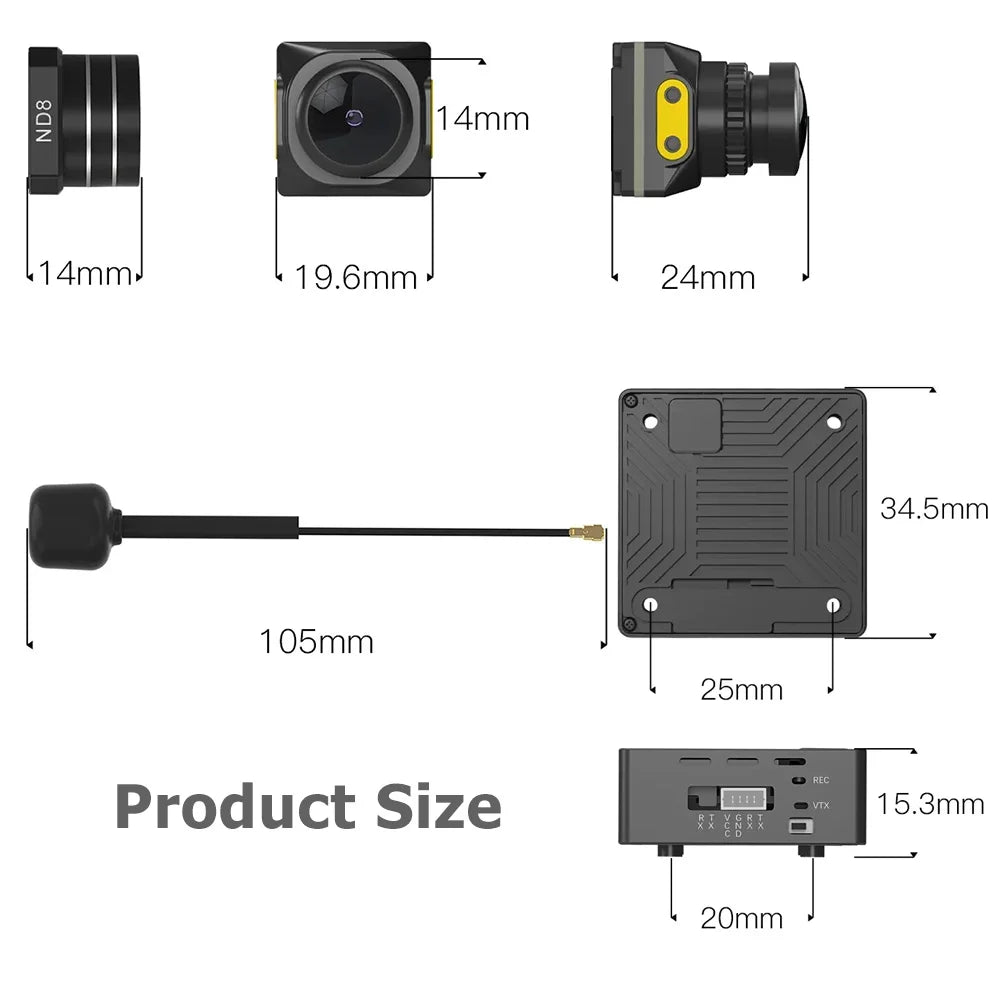

Camera size

19.6mm*19mm*24mm

VTX size

15.3mm*34.5mm*34.5mm

VTX Installation hole distance

20*20mm/25*25mm (M2)

Weight

38.5g(Antenna not included)

OSD

Canvas mode

Latency

Average delay 22ms

Antenna

2 (IPEX)

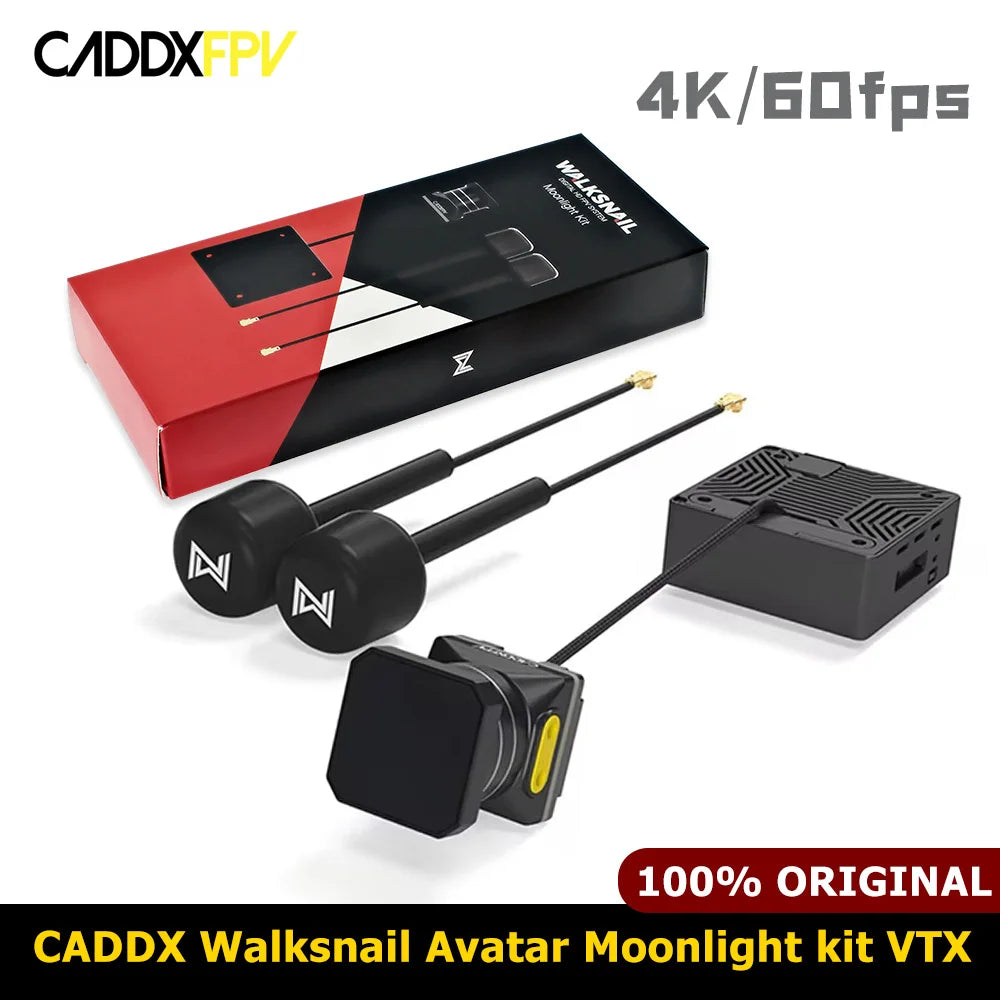

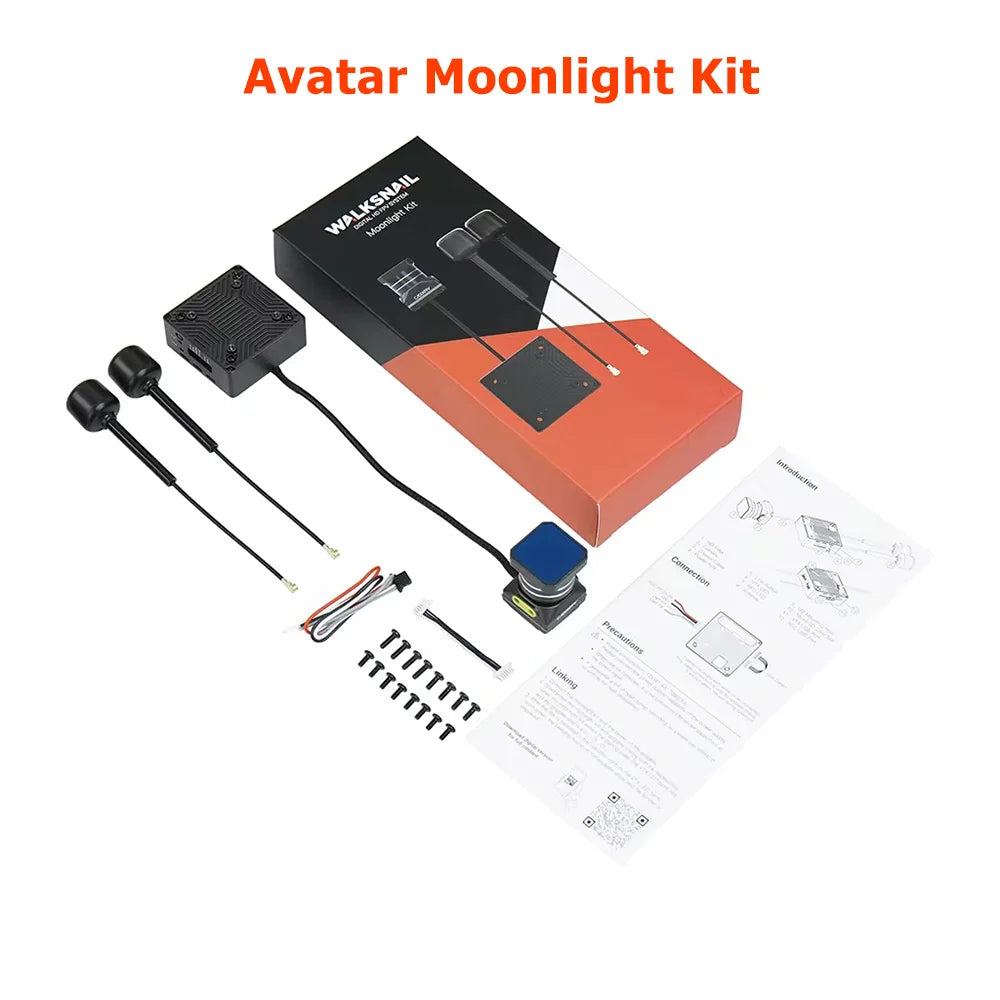

Moonlight kit Packing List:

1 x Walksnail Moonlight kit
8 x M2*4mm round head screws
4 x M2*5mm round head screws
4 x M2*6mm round head screws
1 x Double head 0.8mm*6PIN (4 wires)
1 x 4PIN silicone cable
1 x Quick Start Guide
