Walksnail Avatar HD Camera / VTX Kit 1080P 170° FOV Lower Latency Onboard DVR 4KM Range for Avatar FatShark HD Dominator

Precio regular
€303,00 EUR
Precio de venta
€303,00 EUR
Precio regular
Ganar 151 Puntos de recompensa. Saber más...
Color: Avatar HD Nano Kit
Terms & conditions
Compre en el próximo
Para conseguirlo
Details

Features
Lower latency than the competitor at an average of 22ms
Built-in 8Gb Internal Storage
1080p Screen Resolution
Switchable Aspect Ratio
Dual Antenna Design
5.8GHz Frequency
Onboard DVR
Canvas Mode
4km Range
170° FOV
6V-25.2V

Specifications
AVATAR HD CAMERA
Resolution: 1080p 60FPS / 720P 120FPS / 720P 60FPS
Aspect Ration: 16/9 and 4/3 Switchable
Minimum Illumination: 0.001Lux
Shutter Style: Rolling Shutter
Dimensions: 19x19x22mm
Cable Length:  140mm
Image Sensor: 1/27"
Field Of View: 170°
Aperture: F 2.0
Lens: 2.1mm
Weight: 6g

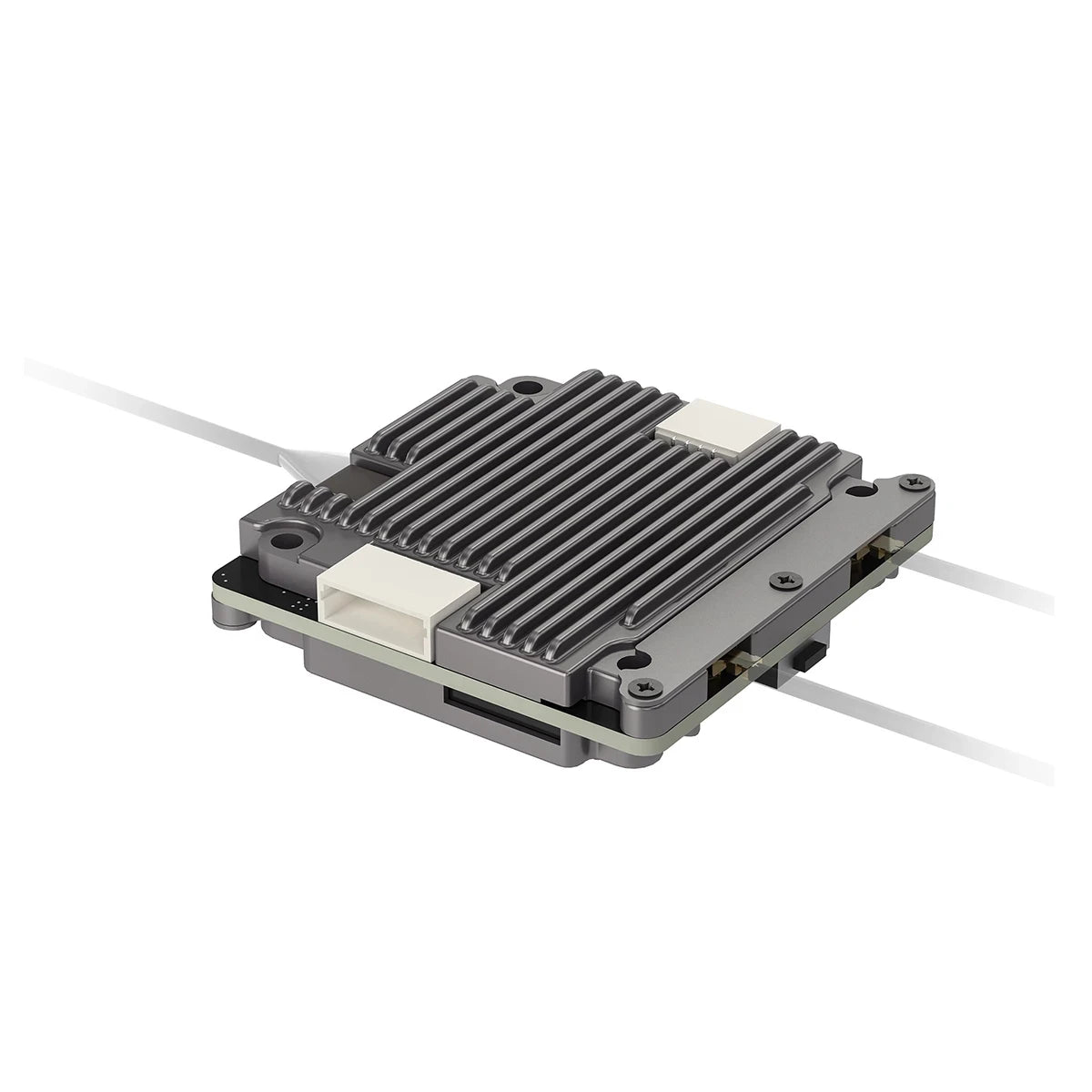

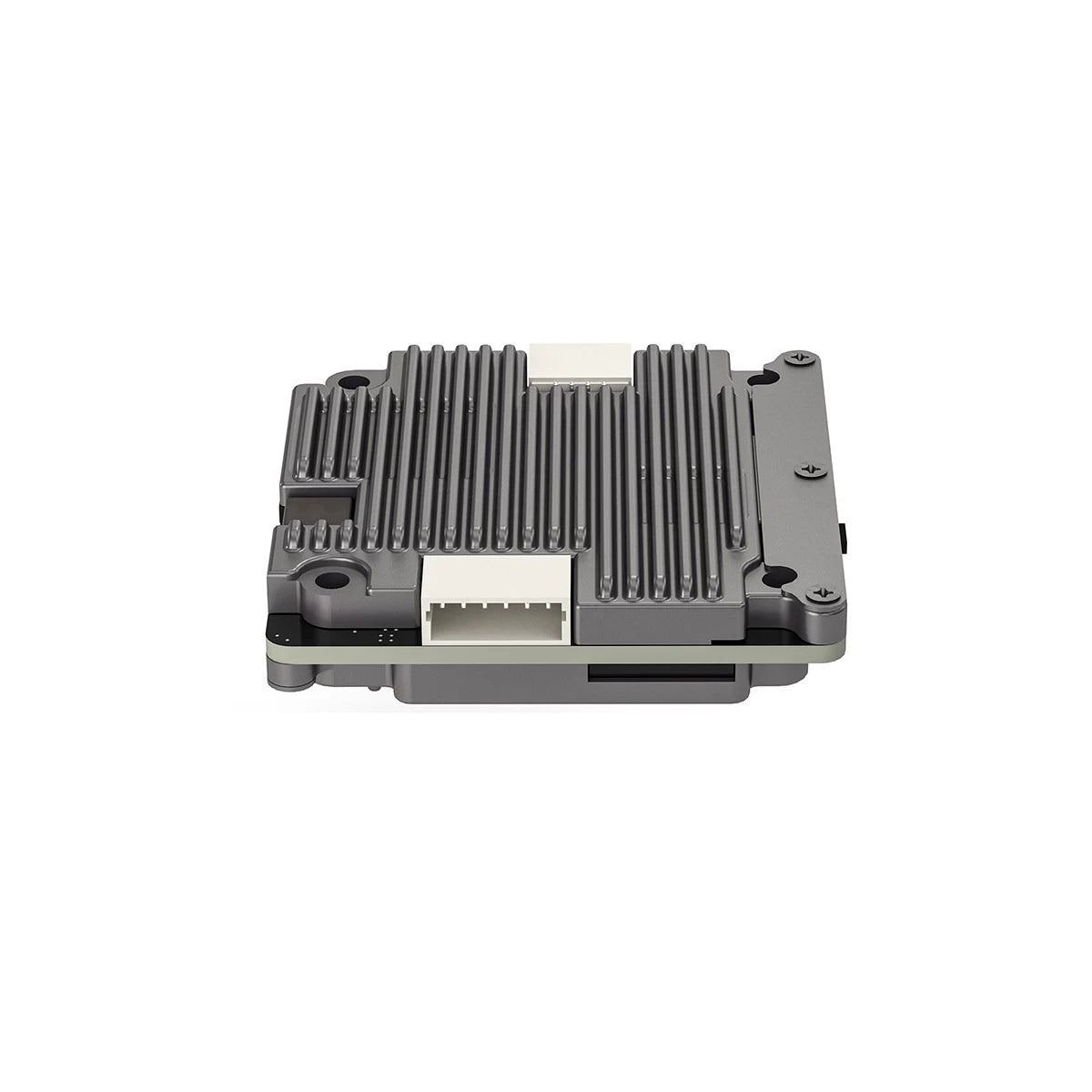

AVATAR VTX
Transition Power: FCC<30dBm / CE <14dBm / SRRC <20dBm / MIC <25dB
Operational Frequency: 5.725-5.850GHz
Operating Temperature: -20° to 40°
Supported FC Firmware: Betaflight
USB Connection: JST x 4 to USB-A
Video Resolution: 1080p / 720p
FC Connection Port: JST1.0 x 6
Dimensions: 33x33x9.5mm
Antenna Connector: U.fl
Latency: 22ms Average
Input Voltage: 6-25.2V
Internal Storage: 8GB
Mounting: 25x25mm
Weight: 16g
Channels: 8

AVATAR ANTENNAS
Radiation Efficiency: >= 98%
Bandwidth: 5.6-5.9GHz
Gain: 2dBi Average
Polarization: LHCP
Connector: U.fl
Length: 90mm
VSWR: <=1.4
Weight: 1.5g

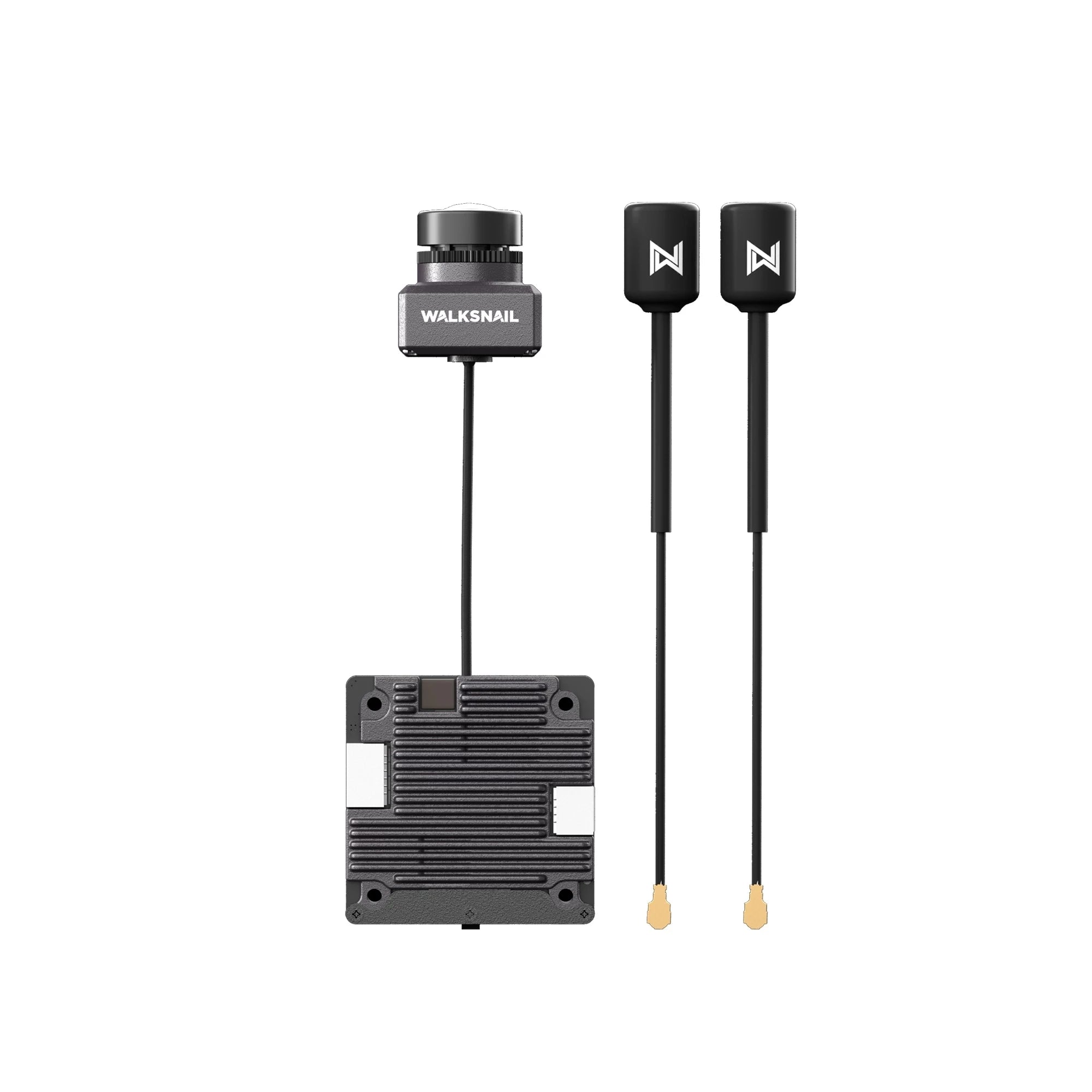

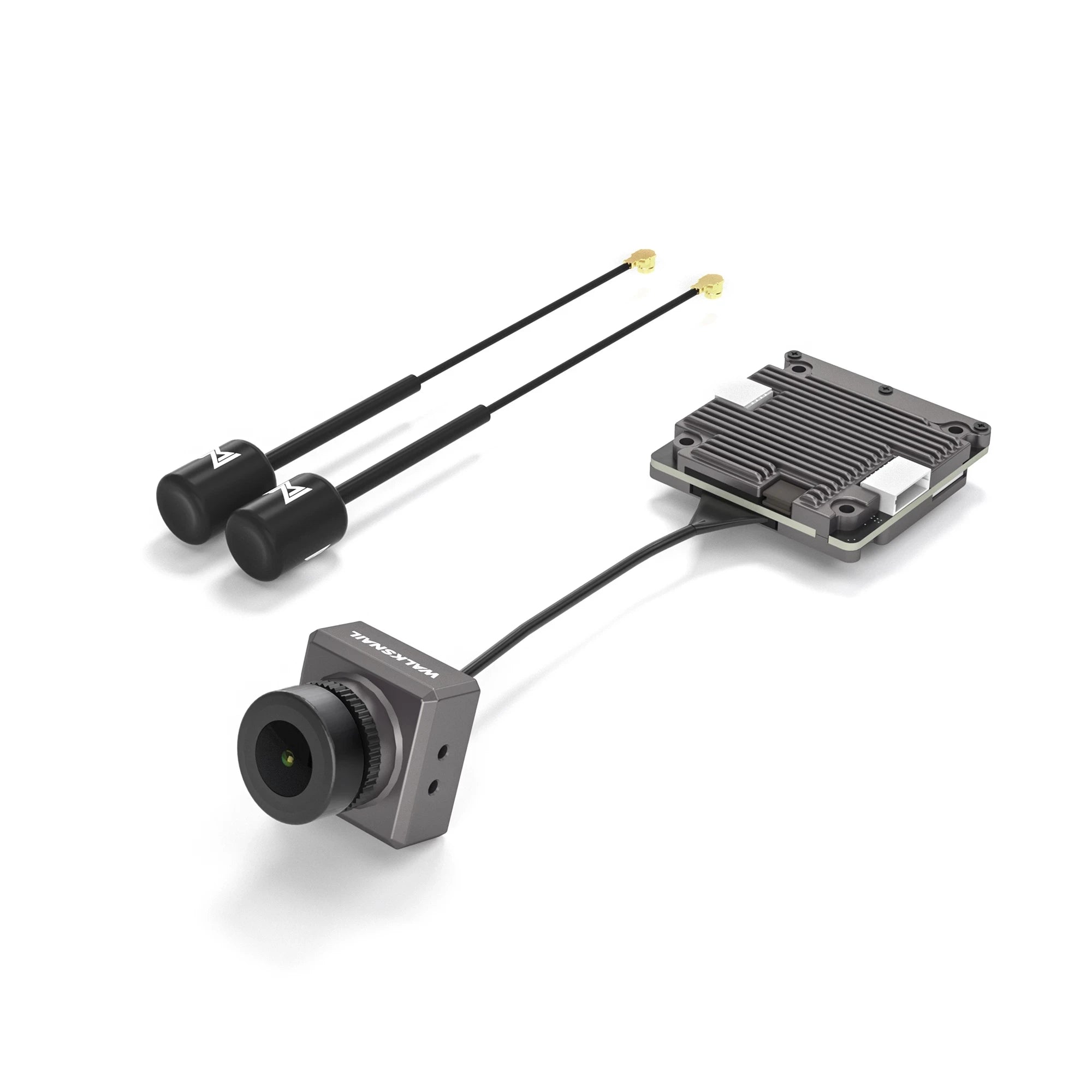

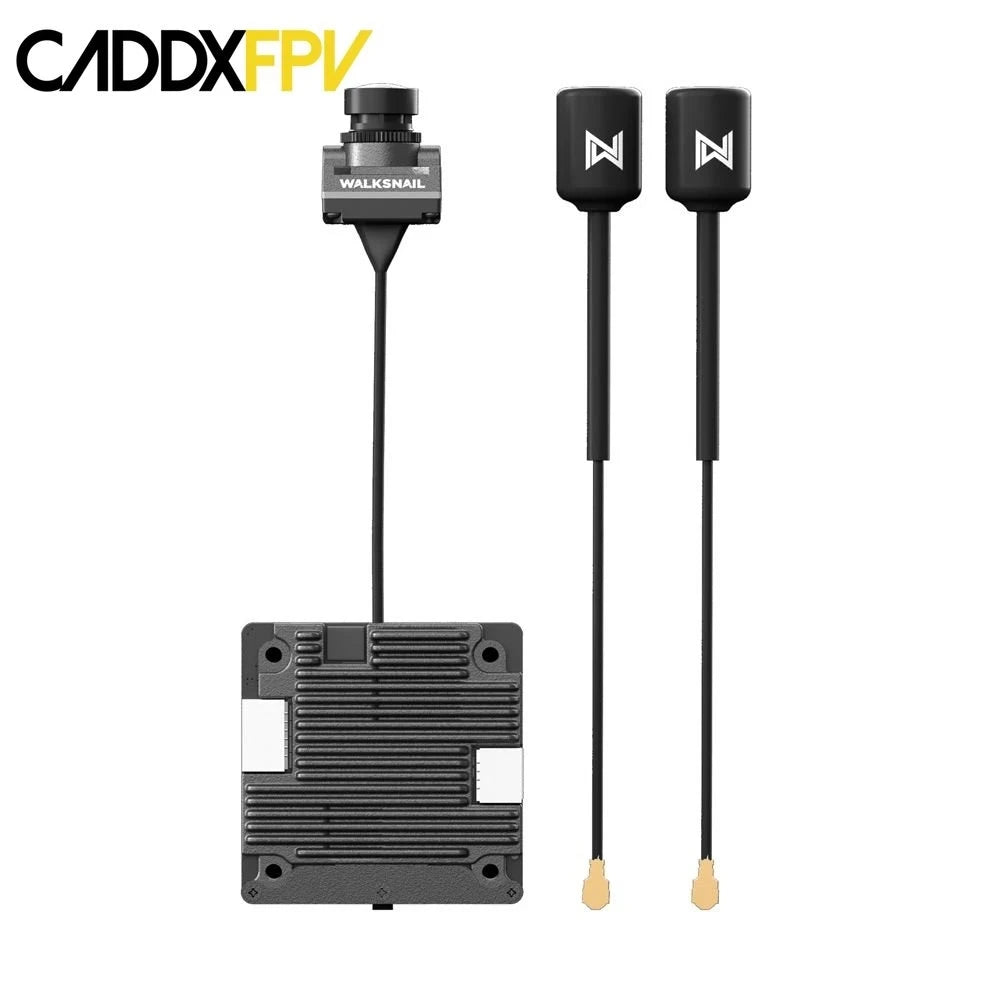

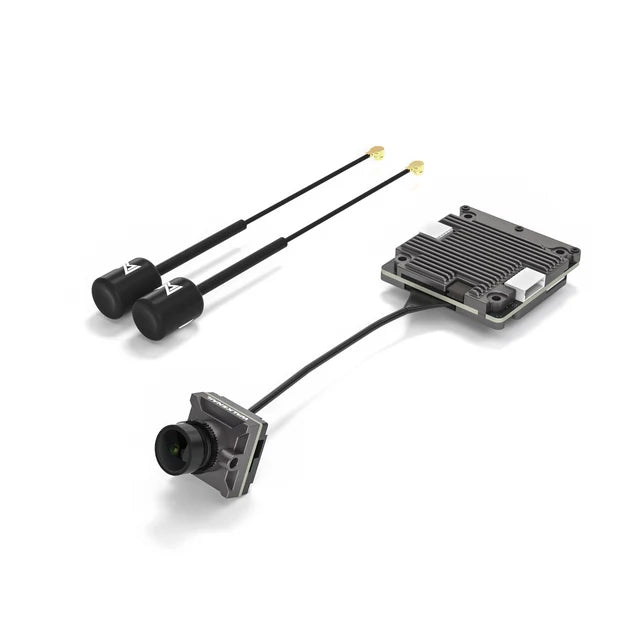

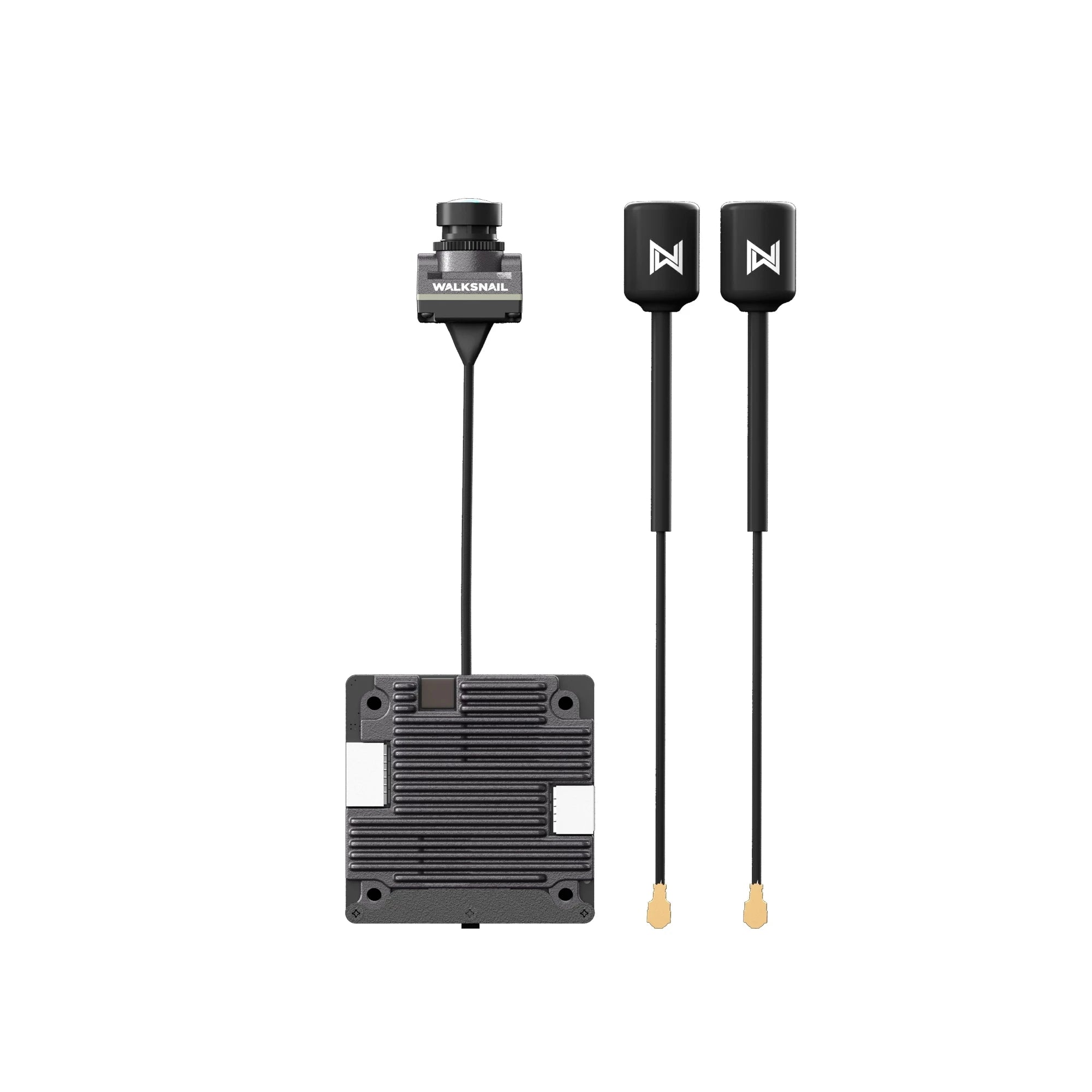

Includes
1x Walksnail Avatar HD Camera w/ Avatar VTX
2x LHCP 5.8GHz Antennas
2x M1.2 1.5mm Screws
1x FC Connection Cable
4x M2 3mm Screws

4x M2 4mm Screws
4x M2 5mm Screws
1x USB Adapter
