Mark4 Mark 4 7inch 295mm FPV Frame& F4 V3S PLUS Stack BLS 60A ESC &A2807 1300KV Brushless Motor& 7040 propeller RC Drone Kit

Precio regular
€175,00 EUR
Precio de venta
€175,00 EUR
Precio regular
Ganar 87 Puntos de recompensa. Saber más...
Color: COMBO with FC
Terms & conditions
Compre en el próximo
Para conseguirlo
Details

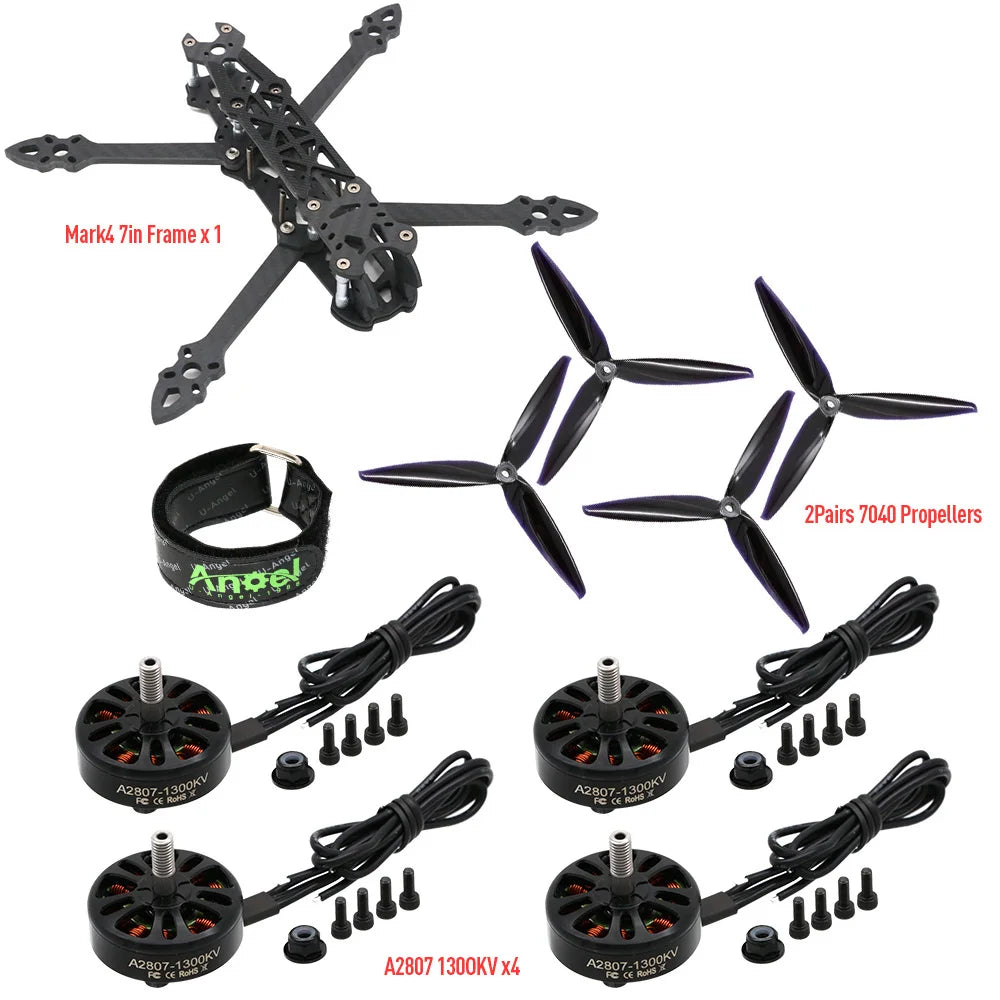

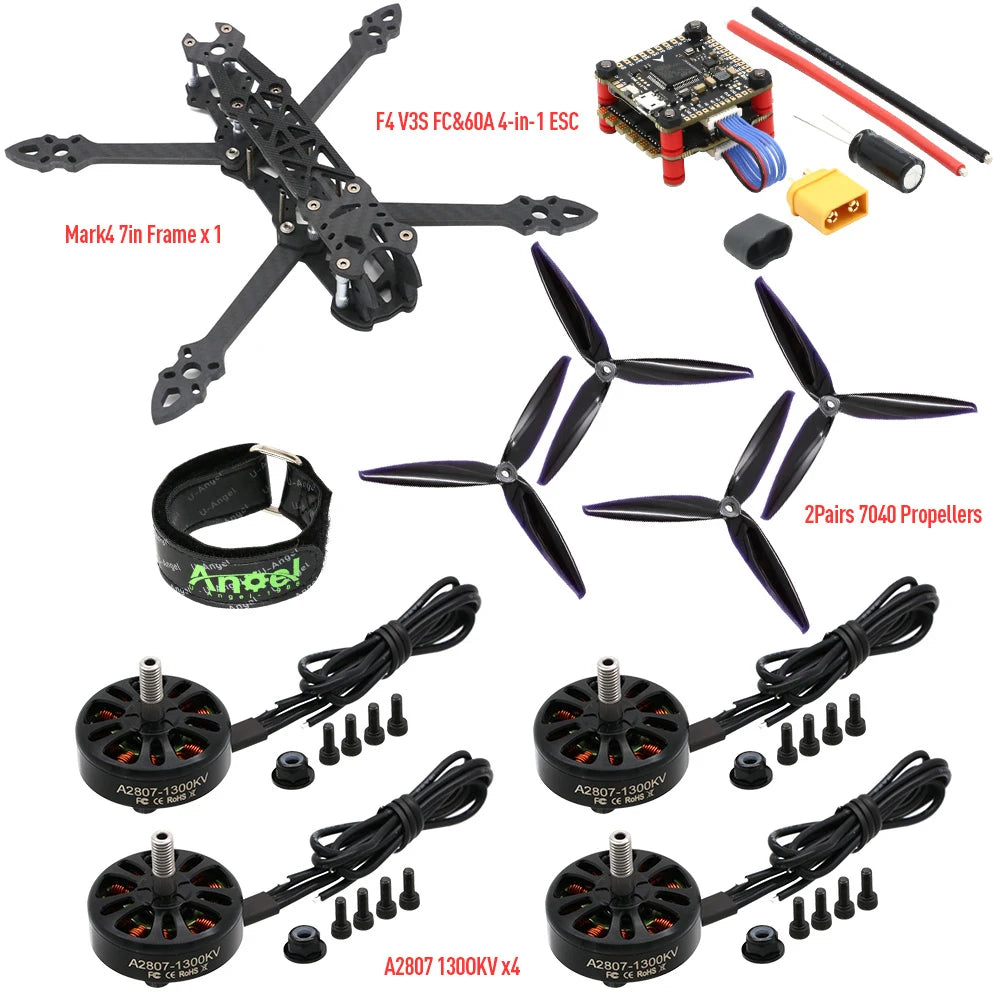

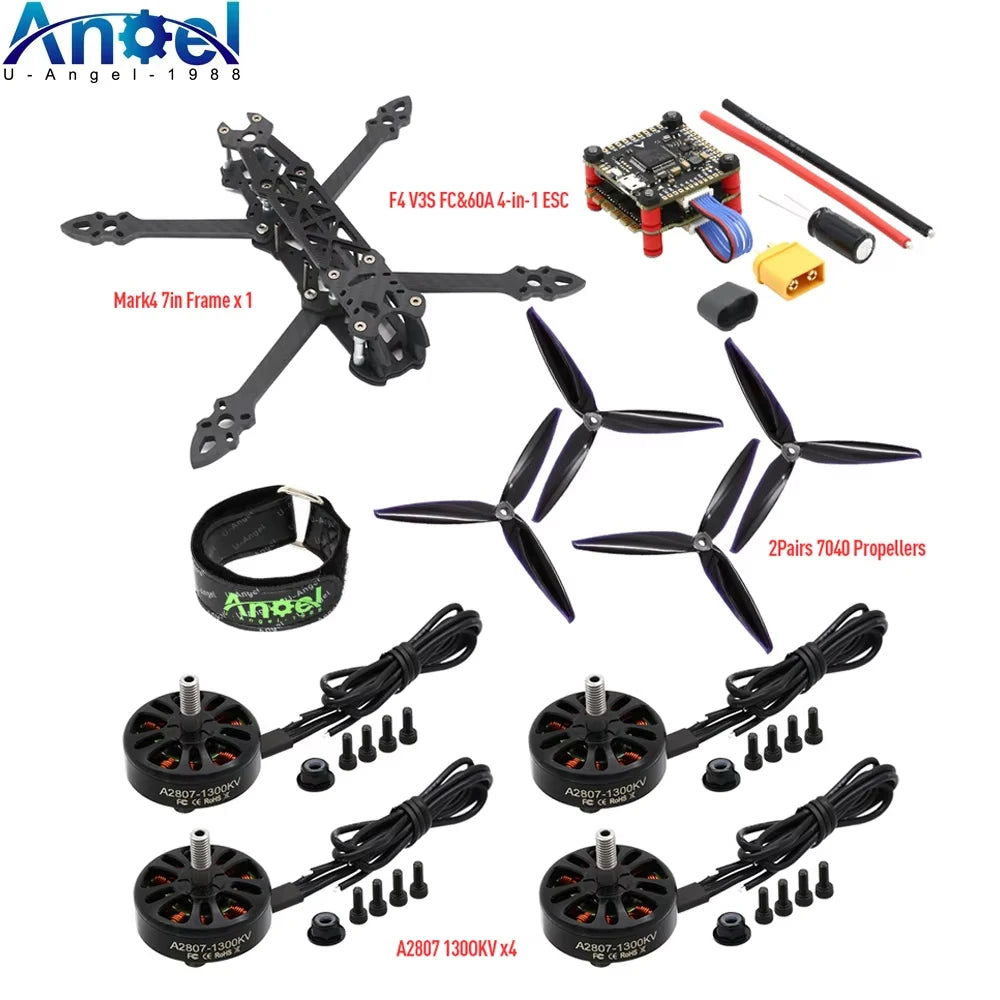

Mark4 Mark 4 7inch 295mm FPV Frame& F4 V3S PLUS Stack BLS 60A ESC &A2807 1300KV Brushless Motor& 7040 propeller Rc Drone Kit



Frame

SPECIFICATIONS:

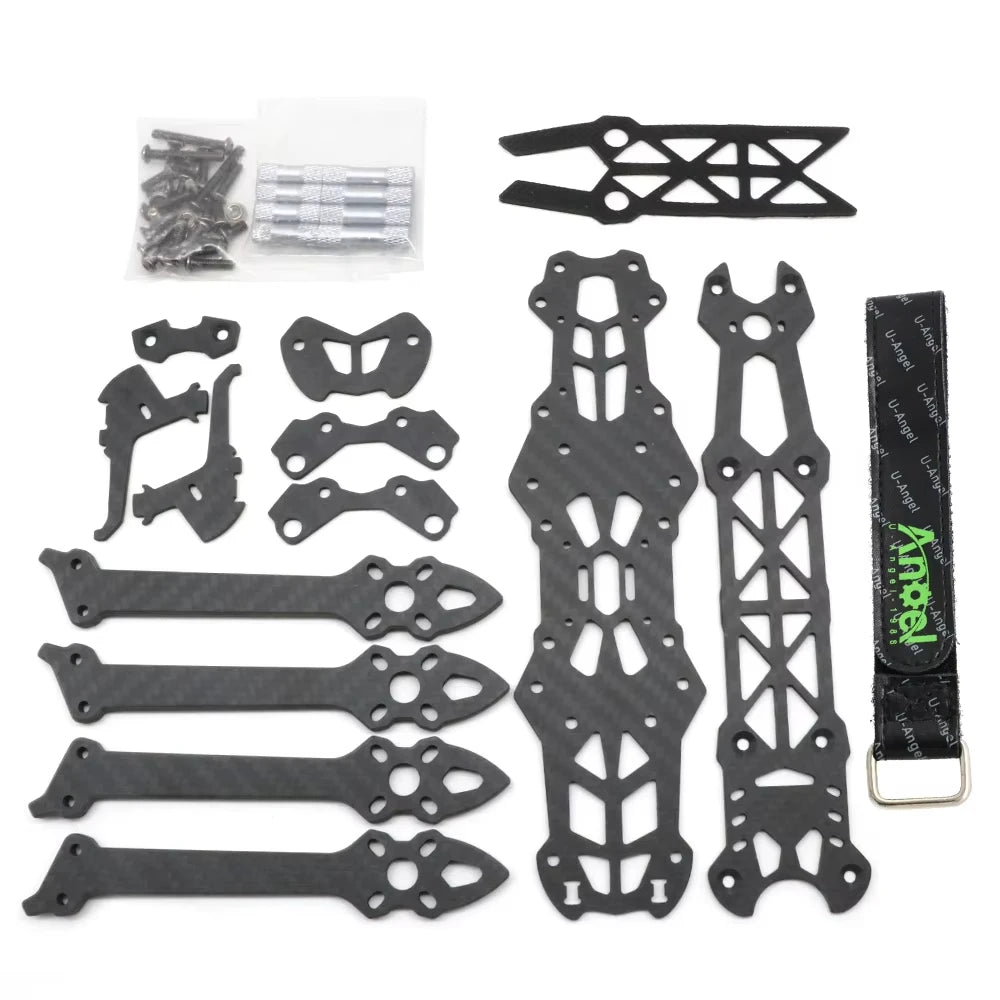

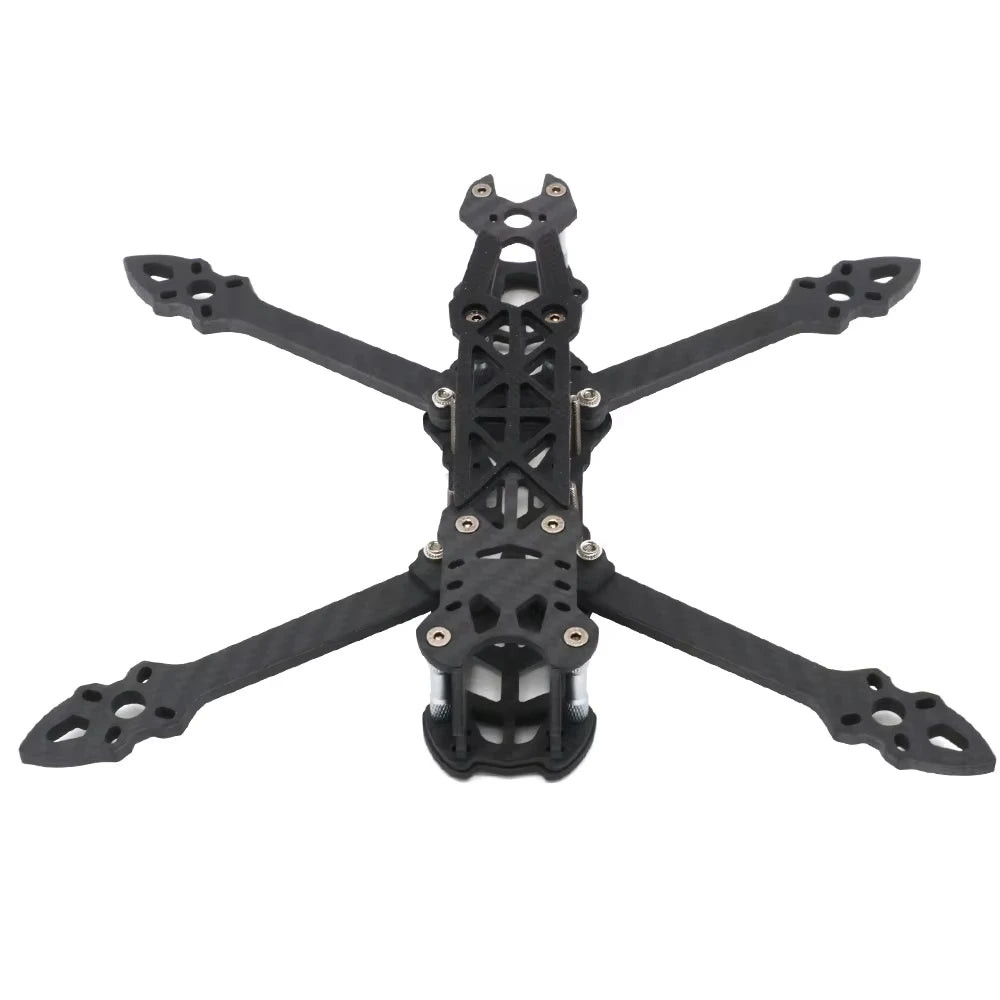

Name:Mark 4 7inch 295mm FPV Carbon Fiber Frame

Weight: 121g

Motor to moto: 295MM

Size: 193*223MM

Arms plate: 5MM

Top plate: 2.5MM

Bottom plate: 2.5MM

Side plate: 2.5MM

Camera mount size:19.3mm (not included)

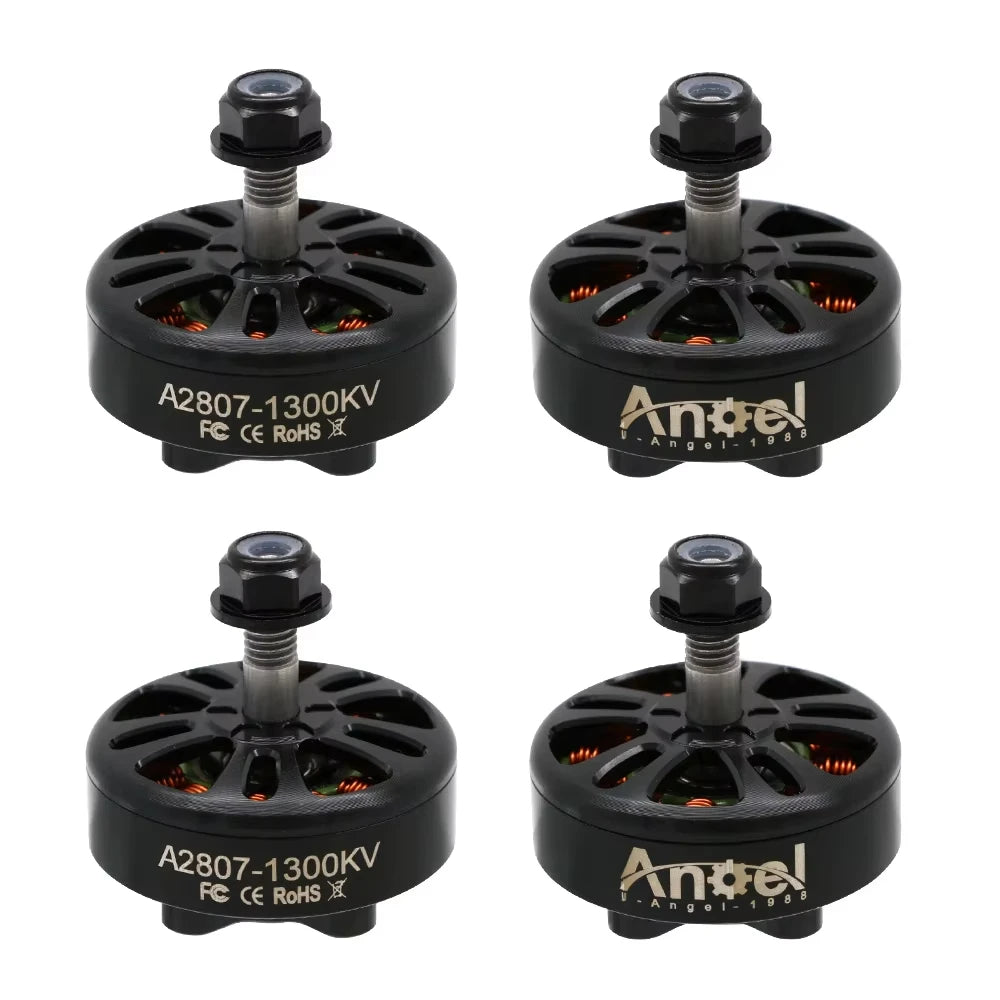

Motors:A2807 1300KV 6s Brushless Motor

ESC: 40A-60A

Propeller: 7 inch

Battery: 4S 1800mAh-6s 2200mAh

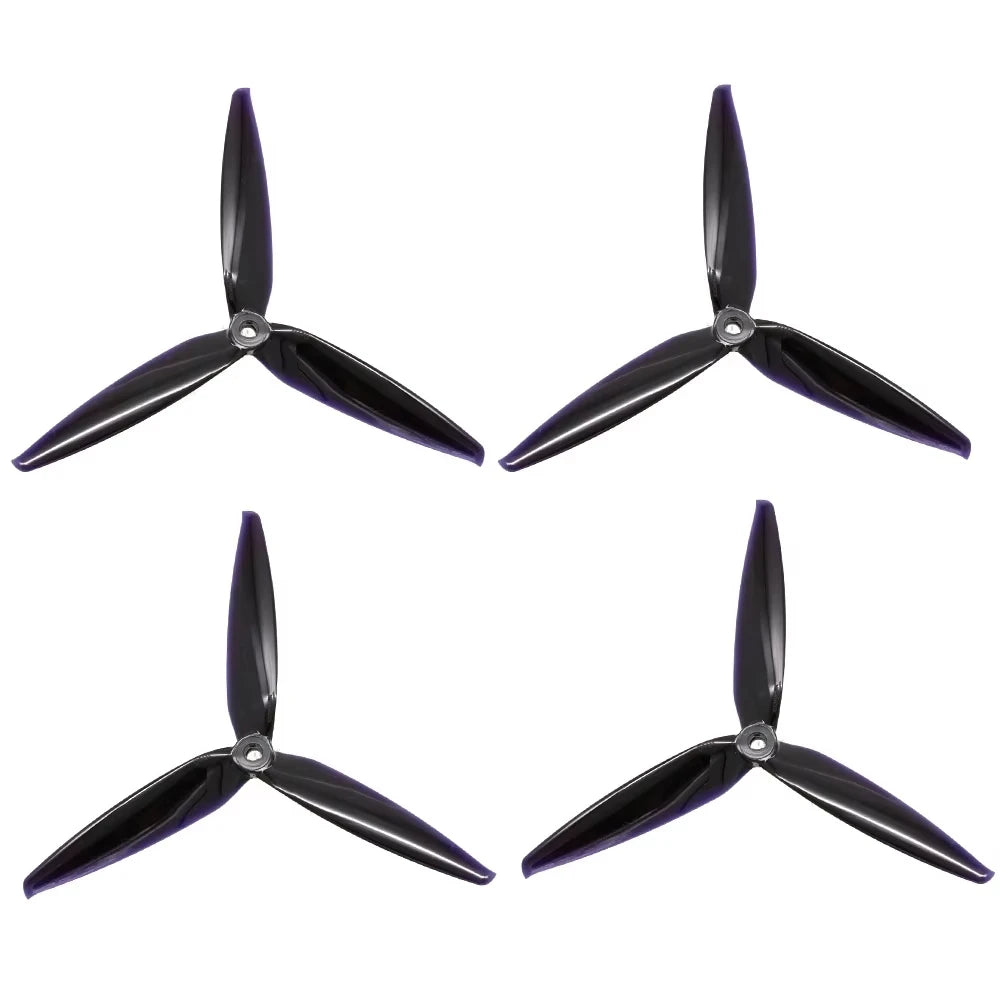

Tracker 7x4x3 Durable Tri-Blade Light Grey (2CW+2CCW)-Poly Carbonate

SPECIFICATIONS:

Propeller Diameter: 7 inch

Pitch: 4

Blades: 3

Material: Poly Carbonate

Weight: 9.1g

Hub Diameter: 13.5mm

Hub Thickness: 7.5mm

Shaft: 5mm

Adaptor Rings : NO



F4 V3S PLUS Stack BLS 60A ESC

Specification:
Item name: F4 V3 PLUS Flight Controller
Size: 36x36mm
Mounting holes: 30.5x30.5mm
STM32 F405 MCU
Dshot support
Drag and Drop OSD configured via Betaflight
Gyro:BMI270
SBUS / PPM AND Spketrum DSMX ports
MicroSD card blackbox
Baro (BMP280)
BEC:5v3a 9V3A
On-board video filters (only 5V to VTX and camera)
The installation size is 30.5mm×30.5mm, the mounting hole is M4, and it
supports shock-absorbing column installation
ESC onboard current sensor.
Continuous current: 60A
Instantaneous current [5 seconds]: 70A
Firmware: BLS J_H_30_REV16_7
The ESC has on-board filter capacitors to suppress the back electromotive
force, stabilize the battery voltage, and protect the precision components of the flight control ESC

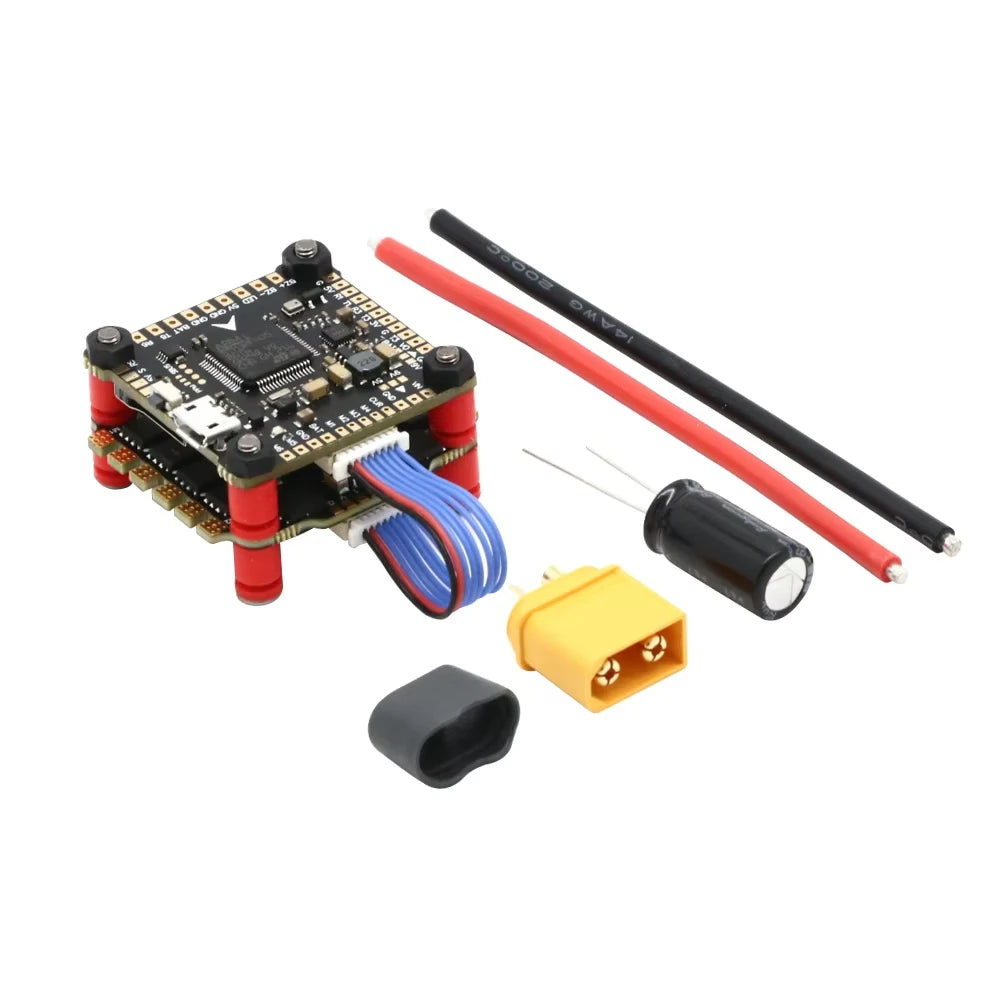

Betaflight F4 V3S PLUS FC + BLHELI 60A 3-6S 4-in-1 Brushless ESC

Betaflight F4 V3S PLUS FC Flight Controller:
Betaflight F4 V3S PLUS FC flight controller board for RC FPV drone.
Size: 36x36mm, Mounting Holes: 30.5x30.5mm.
The function of the flight control is to control the drone through the gyroscope on the flight control board.
Great choice for university professors and students who are interested in developing RC FPV drone.
If there are any problems, please contact our store in time.

Specifications:
Item Name: F4 V3 PLUS Flight Controller
Size: 36x36mm
Mounting Holes: 30.5x30.5mm
STM32 F405 MCU
Dshot support
Drag and Drop OSD configured via Betaflight
Gyro: BMI270
SBUS/PPM AND Spketrum DSMX ports
Memory card blackbox
Baro (BMP280)
BEC: 5V3A, 9V3A;
On-board video filters (only 5V to VTX and camera)


BLHELI_S 60A 3-6S 4-in-1 ESC:
The installation size is 30.5mm×30.5mm, the mounting hole is M4, and it supports shock-absorbing column installation
ESC onboard current sensor.
Continuous current: 60A
Instantaneous current [5 seconds]: 70A
Firmware: BLS J_H_30_REV16_7
The ESC has on-board filter capacitors to suppress the back electromotive force, stabilize
the battery voltage, and protect the precision components of the flight control ESCTracker 7X4X3 7040 7-inch 3-blade CW CCW Propeller:

Propeller Diameter: 7 inch
Pitch: 4
Blades: 3
Material: Poly Carbonate
Weight: 9.1g
Hub Diameter: 13.5mm
Hub Thickness: 7.5mm
Shaft: 5mm
Adaptor Rings: NO
